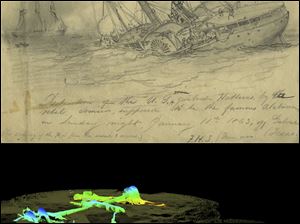

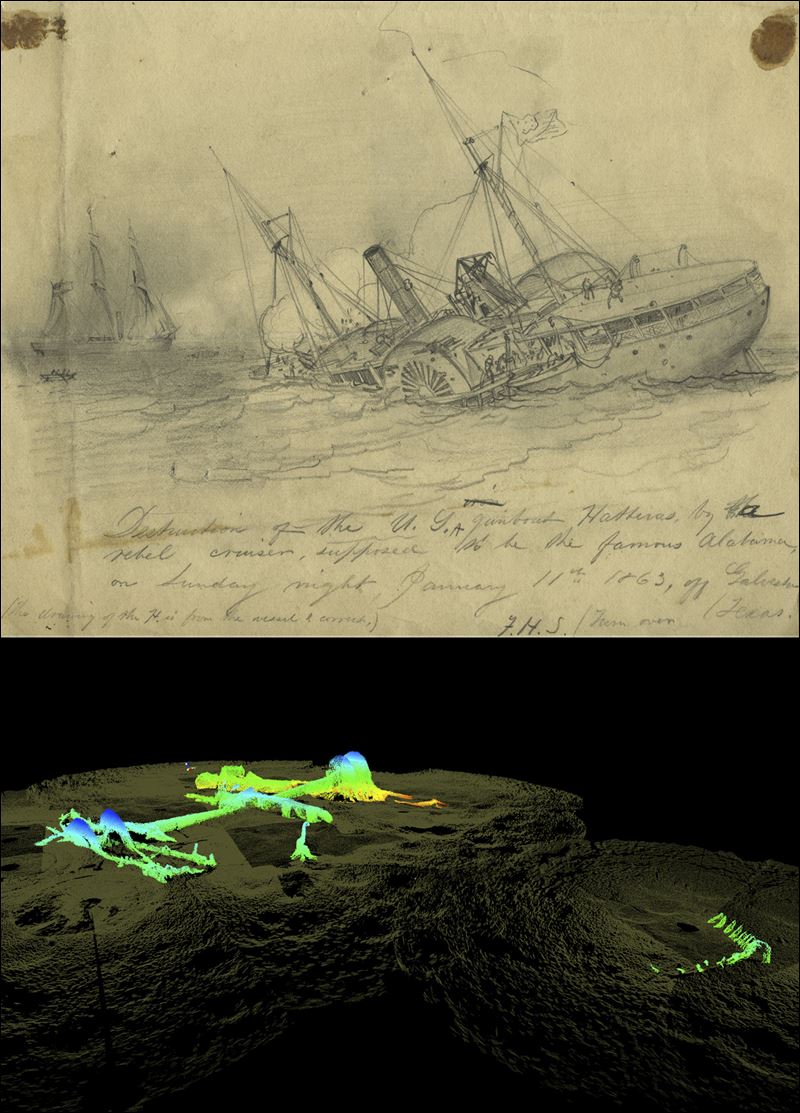

A view of the USS Hatteras as it fought and sank in 1863, depicted in a drawing by Civil War artist Francis H. Schell, above a 2012 high-resolution 3-D sonar image from the National Oceanic and Atmospheric Administration.
Associated Press Enlarge
GALVESTON, Texas — The remains of the only U.S. Navy ship sunk in the Gulf of Mexico during Civil War combat now can be seen in 3-D sonar images from the Gulf's murky depths, revealing details such as a shell hole that may have been among the ship's fatal wounds.
The high-resolution images of the 210-foot, iron-hulled USS Hatteras are being released this month to coincide with the 150th anniversary of the battle where the ship was lost. Besides the shell hole, they also show previously unknown details like a paddle wheel and the ship's stern and rudder emerging from the shifting undersea sands about 20 miles off the coast of Galveston.
"This vessel is a practically intact time capsule sealed by mud and sand, and what is there will be the things that help bring the crew and ship to life in a way," said Jim Delgado, the project's leader and director of maritime heritage for the National Oceanic and Atmospheric Administration's Office of National Marine Sanctuaries.
"You can fly through the wreck, you're getting a view no diver can get," Delgado said.
The Hatteras had sat mostly undisturbed and unnoticed from January 1863 — when a Confederate raider sunk the ship and took most of the crew prisoner — until its discovery in the early 1970s.
Recent storms shifted the sand and mud where the Hatteras rests 57 feet below the surface, exposing more of the ship. So archaeologists and technicians, racing to beat any potential seabed movement that could conceal the Hatteras again, spent two days last September scanning the wreckage using sonar imaging technology for the first time at sea.
Divers used the 3-D gear to map the site in the silt-filled water where visibility is from near zero to only a few feet. The water's murkiness doesn't affect sonar technology like it would regular photography equipment. Sonar technology produces computer-colored images by analyzing sound waves bouncing off objects.
"We have very crisp, measureable images that show the bulk of the steam machinery in the engine room is there," Delgado said. "Some of it is knocked over, been toppled, which suggests we probably have 60 percent of the vessel buried."
Also revealed were platforms for the ship's 32-pounder guns, named for the size of the cast-iron shell the cannon delivered, and the bow.
"Very exciting," said Jami Durham, manager of historic properties, research and special programs for the Galveston Historical Foundation. "We knew the ship was out there, and to finally see the images. It seemed to make it more real."
The imaging plots the paddle wheel shaft, which appears to have been bent when the ship capsized, and damage to engine room machinery, including the shell hole that likely helped doom the ship, Delgado said.
The Hatteras site is in waters administered by the federal Bureau of Ocean Energy Management. The ship itself, even 150 years later, remains U.S. Navy property.
The 1,126-ton Hatteras was built in 1861 in Wilmington, Del., as a civilian steamship, according to the Navy Historical Center. It was purchased by the Navy later that year, commissioned at the Philadelphia Navy Yard and assigned to join the blockade of the Florida coast to keep vessels from delivering supplies and war weapons and ammunition to the Confederacy.
The ship had an active tour in Florida, raiding Cedar Keys. It destroyed at least seven schooners and facilities before being transferred to the Gulf.
On Jan. 6, 1863, the Hatteras joined the fleet commanded by David Farragut, of "Damn the torpedoes, full speed ahead!" U.S. Navy fame, for similar assignments off Galveston. At the time, Galveston was the most prominent city and port in Texas, which had joined the Confederacy.
Days earlier, Union forces had been expelled by Confederate troops in the Battle of Galveston, considered the most significant military event in Galveston history.
On Jan. 11, the Hatteras spotted and tracked down a three-masted ship that identified itself as British, then opened fire from 25 to 200 yards away and revealed it actually was the CSS Alabama, a notorious Confederate raider credited with some 60 kills.
Forty-three minutes later, the Hatteras was burning and taking on water. Cmdr. Homer Blake surrendered and he and his crew were taken aboard the Alabama as prisoners, eventually winding up in Jamaica. Of the 126-man crew, two were lost and are believed entombed in the wreck.
The two crewmen, William Healy, 32, a coal heaver, and John Cleary, 24, a stoker, were from Ireland.
"Two of those guys paid the ultimate price," Delgado said. "This is a place where history happened and people died ... giving their all, making a choice to follow their captain and likely die, to try to do their duty and to serve."
